SPECIFICATIONS

Brand Name: CNCEST

High-concerned chemical: None

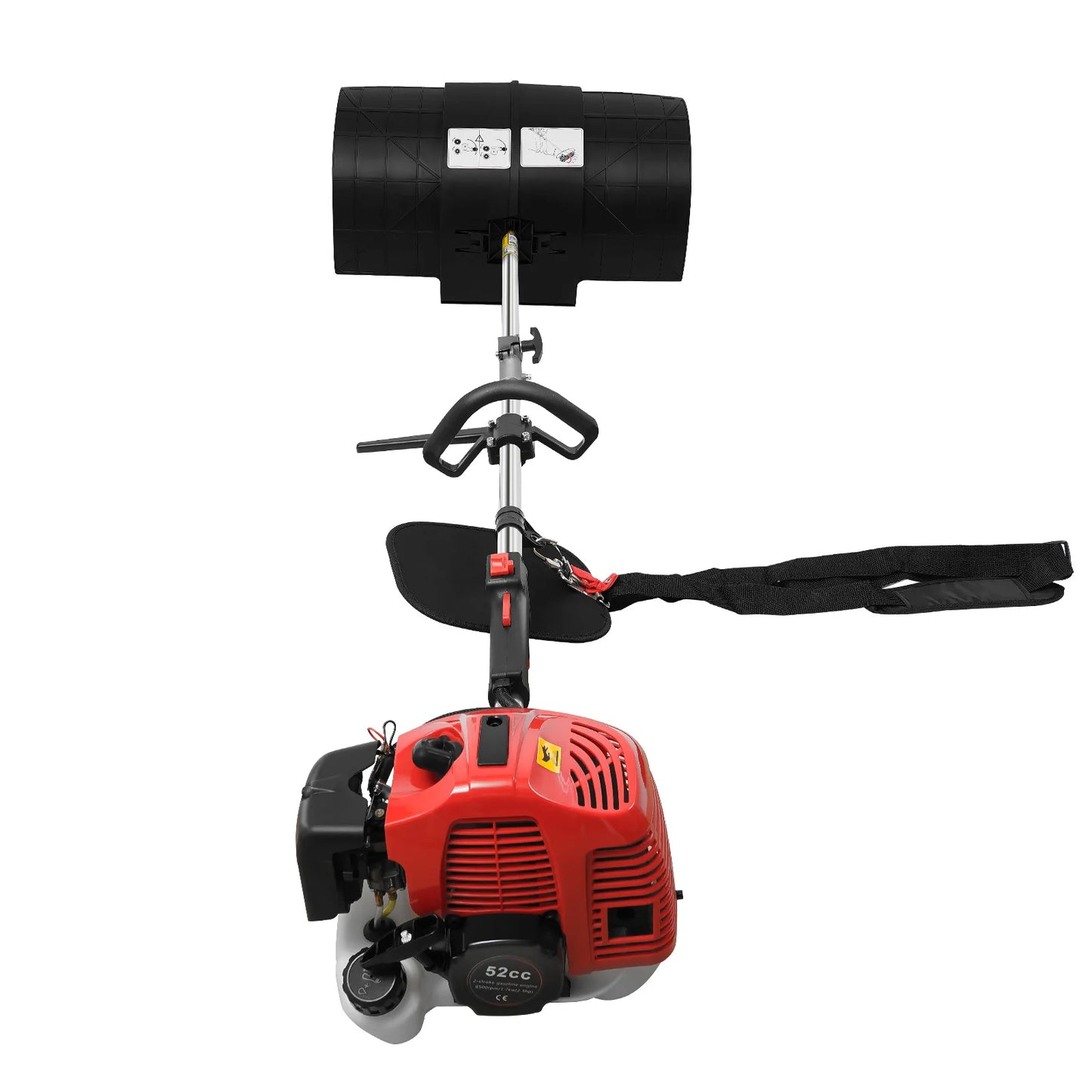

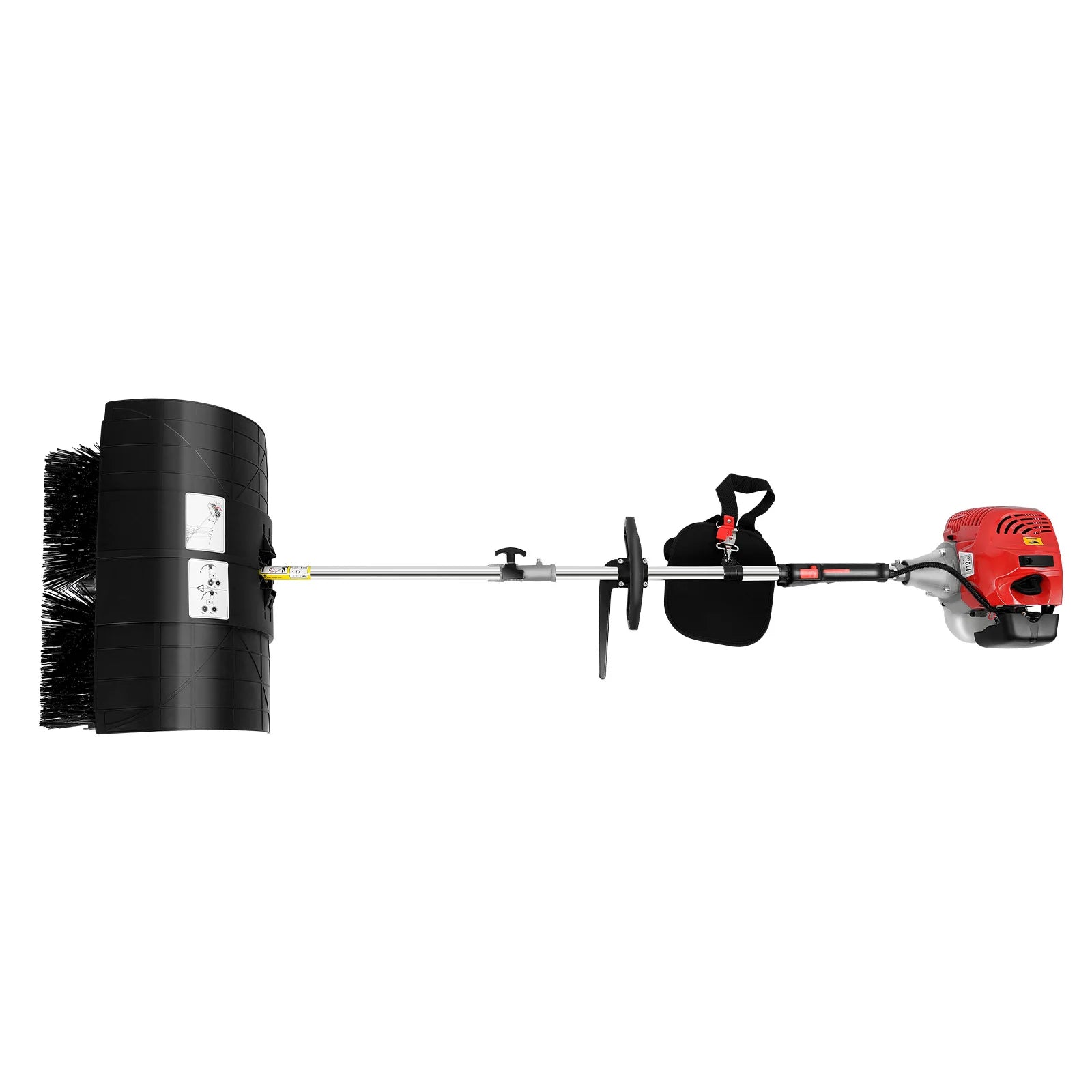

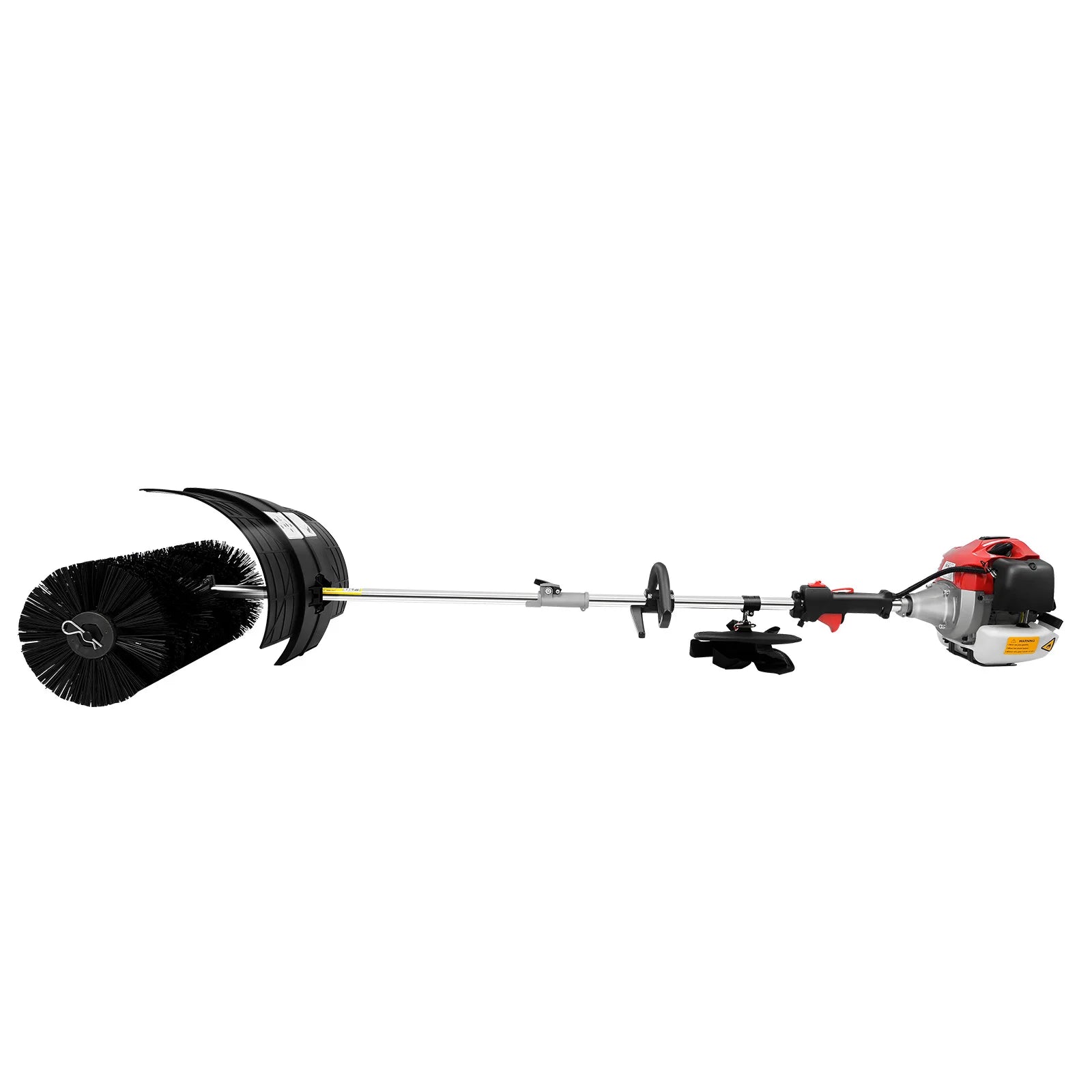

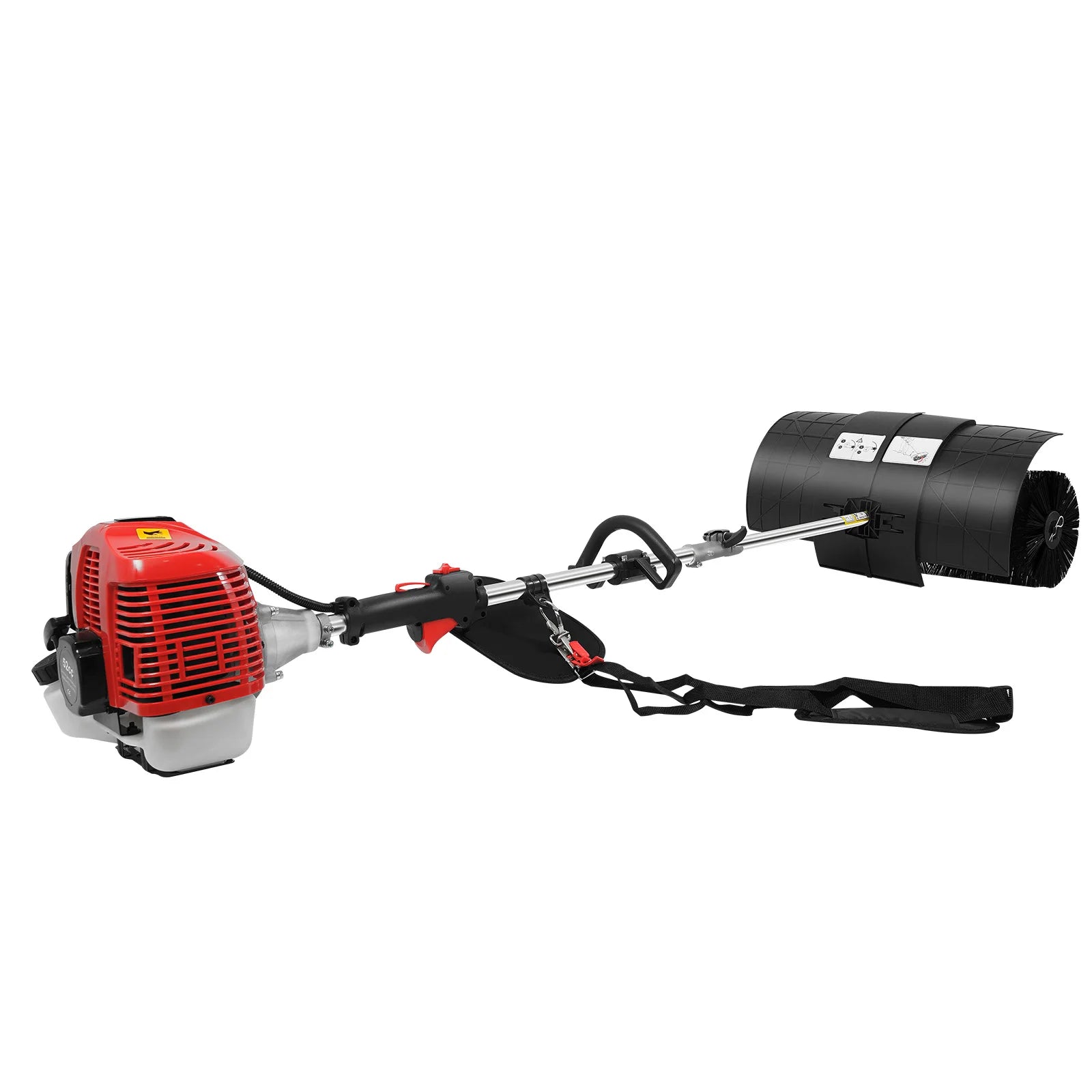

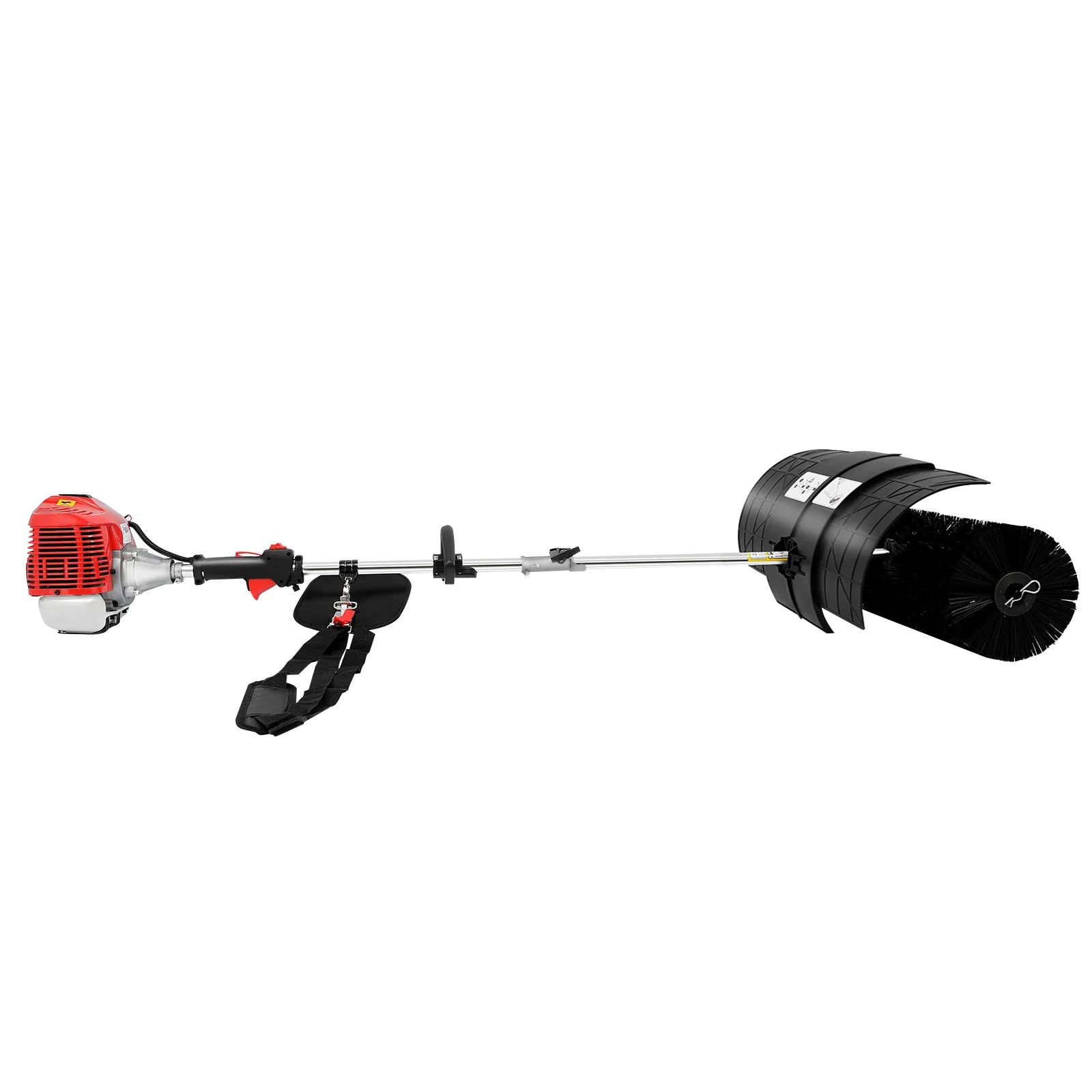

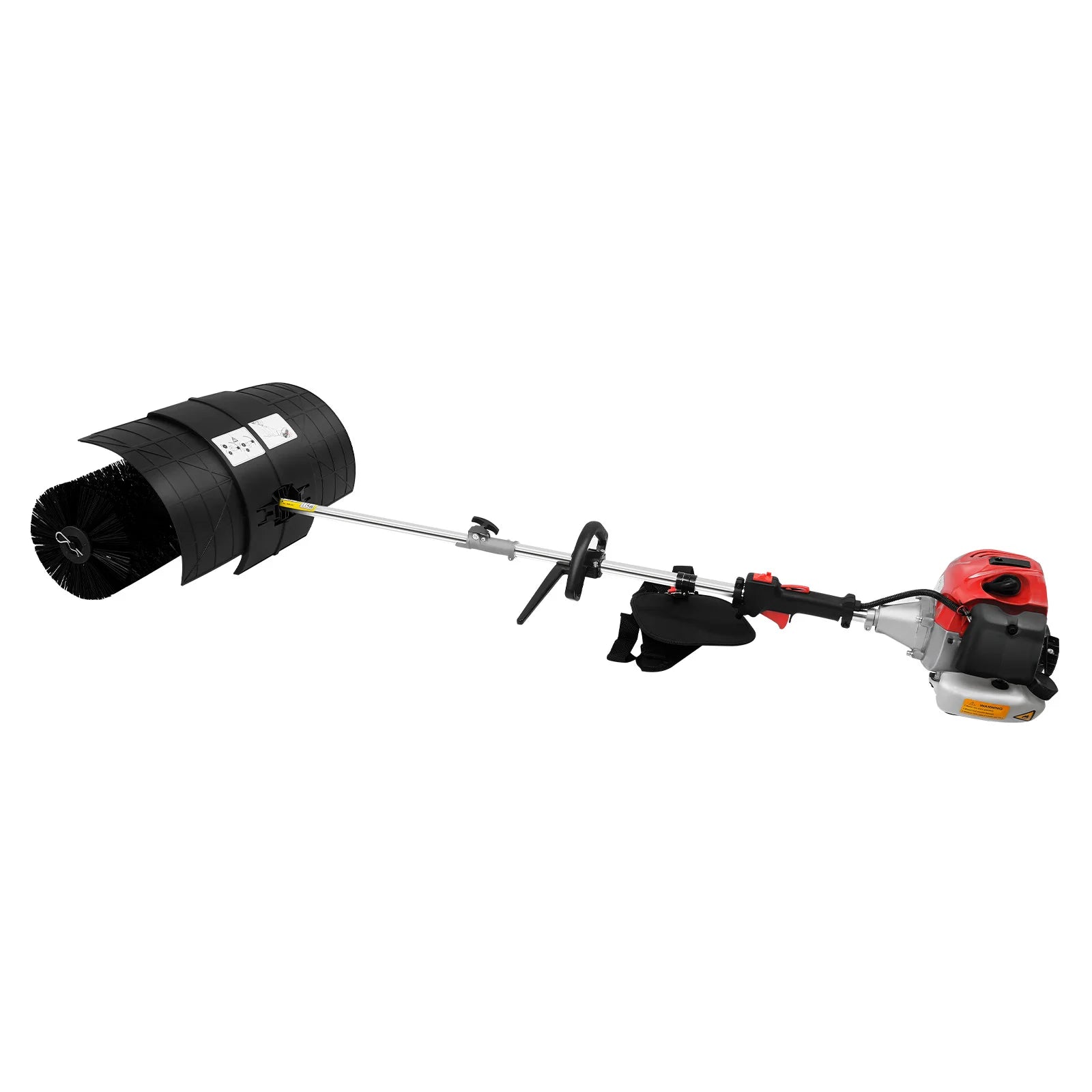

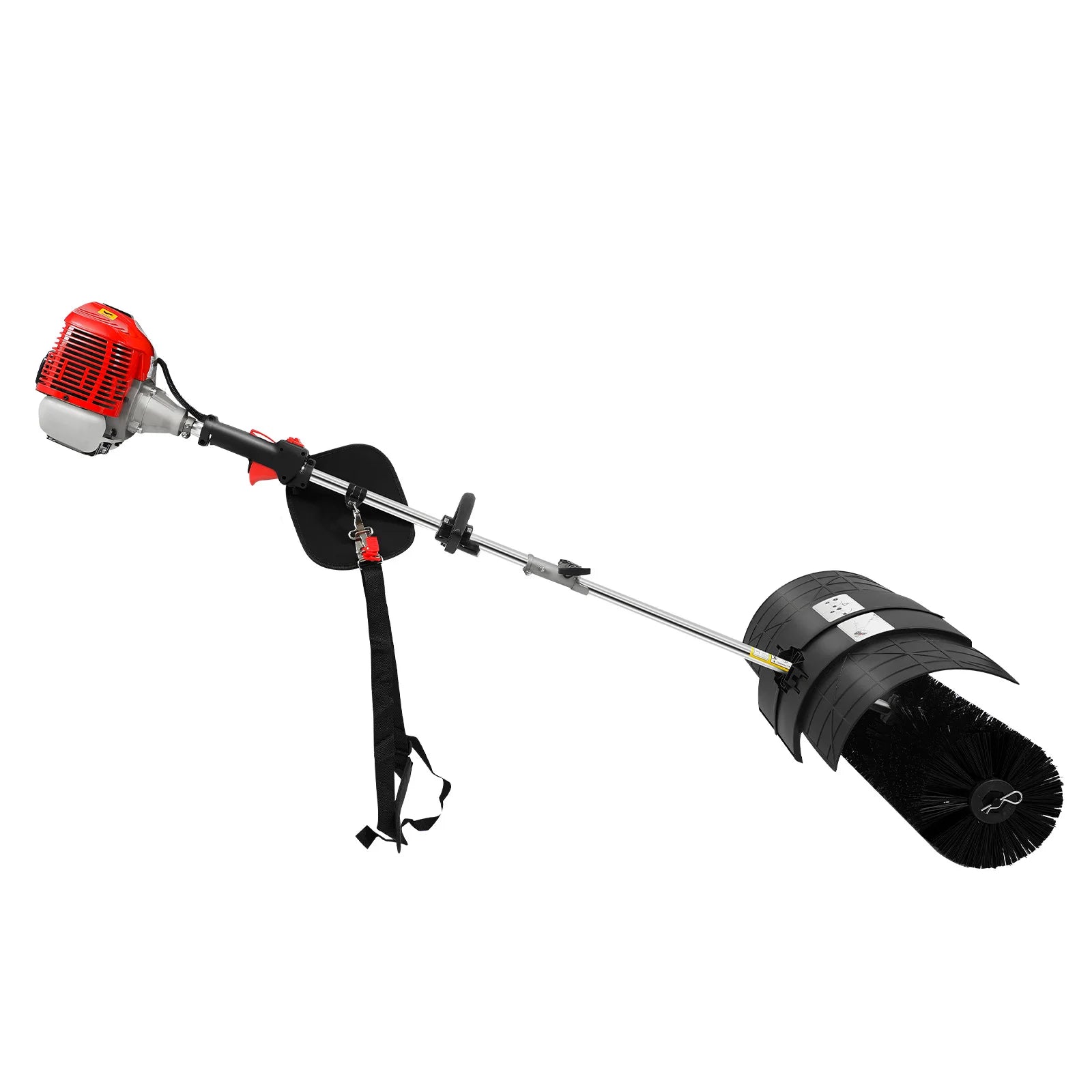

52CC 2.3HP Handheld Sweeper Manual Gas Power Sweeping Broom Artificial Grass Brush Gasoline Powered Broom Garden Lawn Sweeper

Specification

Material: PA6 and Nylon

Color: Black and Red

Assembly Required: Yes

Starting Method: Hand Pull Start

Engine Type: 2-stroke Gasoline Engine

Ratio: 25:1

Operation Mode: Manual

Type: Gasoline Powered Drive

Power: 1.7KW

Speed: 8500RPM

Horsepower: 2.3HP

Displacement: 52cc

Oil Tank Capacity: 1L/33.82oz

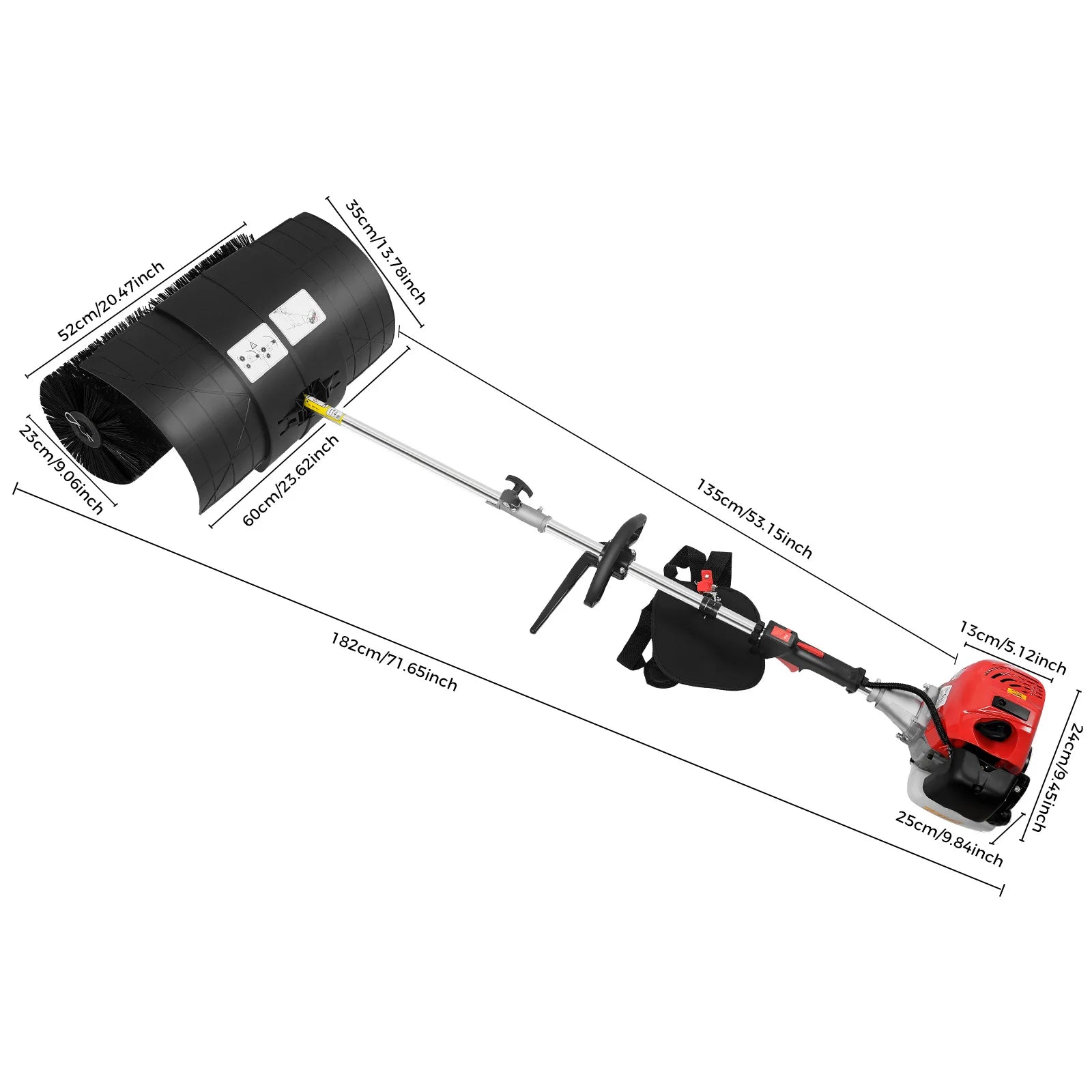

Brush Size(D*L): 23*52cm/9.06*20.47inch

Protective Cover Size(W*L): 35*60cm/13.78*23.62inch

Engine Size: 24*13*25cm/9.45*5.12*9.84inch

Overall Product Length: 182cm/71.65inch

Gross Weight: 15.8kg/34.83lbs

Net Weight: 15kg/33.07lbs

Package Size: 110*41*30cm/43.31*16.14*11.81inch

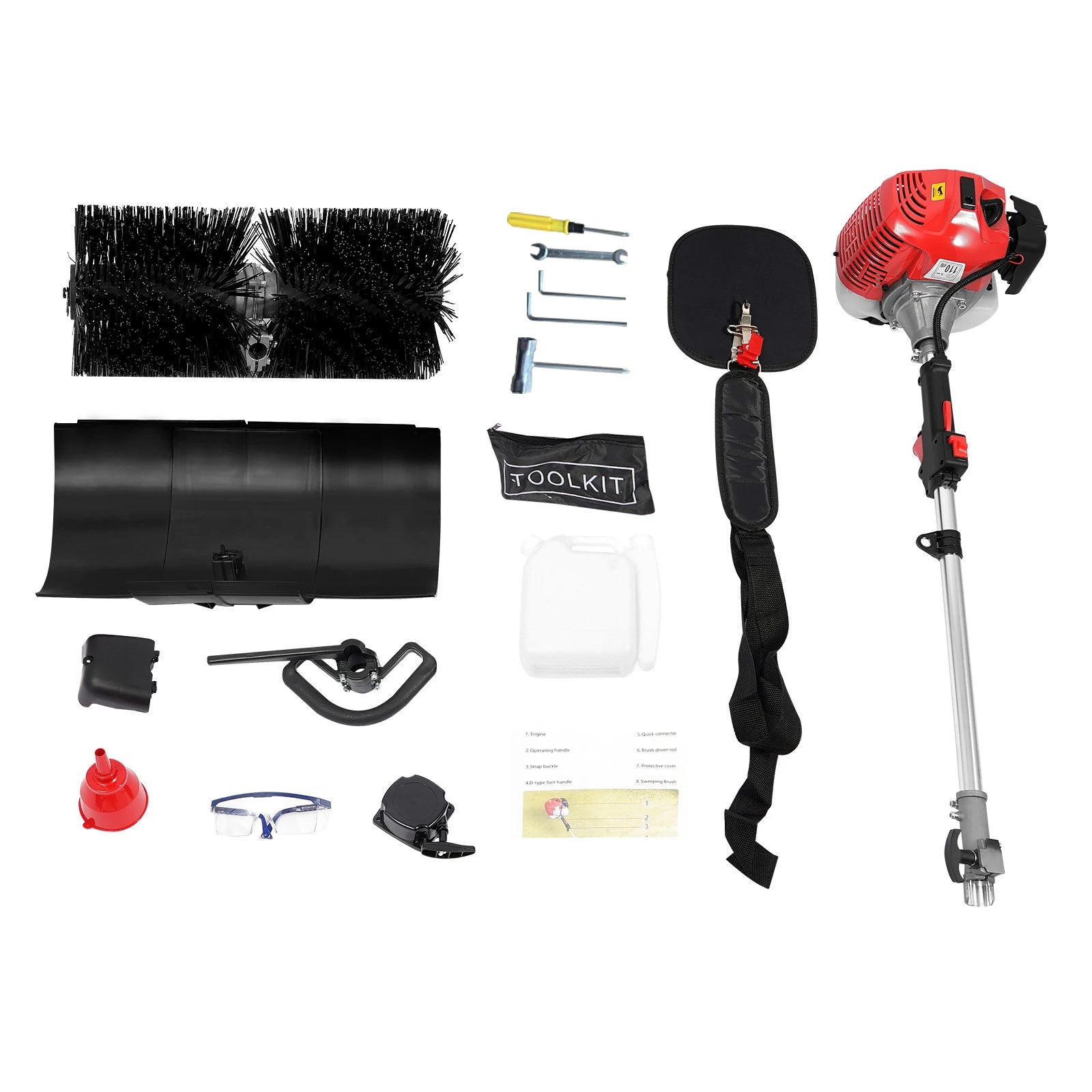

Package Included

1* Lawn Sweeper

1* Engine Motor

1* Sweeping Brush

1* Brush Driving Rod

1* Strap

1* Protective Cover

1 Pair* Goggles

1* Funnel

1* Tool Kit Bag

1* English Manual

Other Accessories for Assembly

Key Features

Build to Last: It is made of high-class PA6 and nylon, making it rust-resistant, sturdy, durable, and long service life.

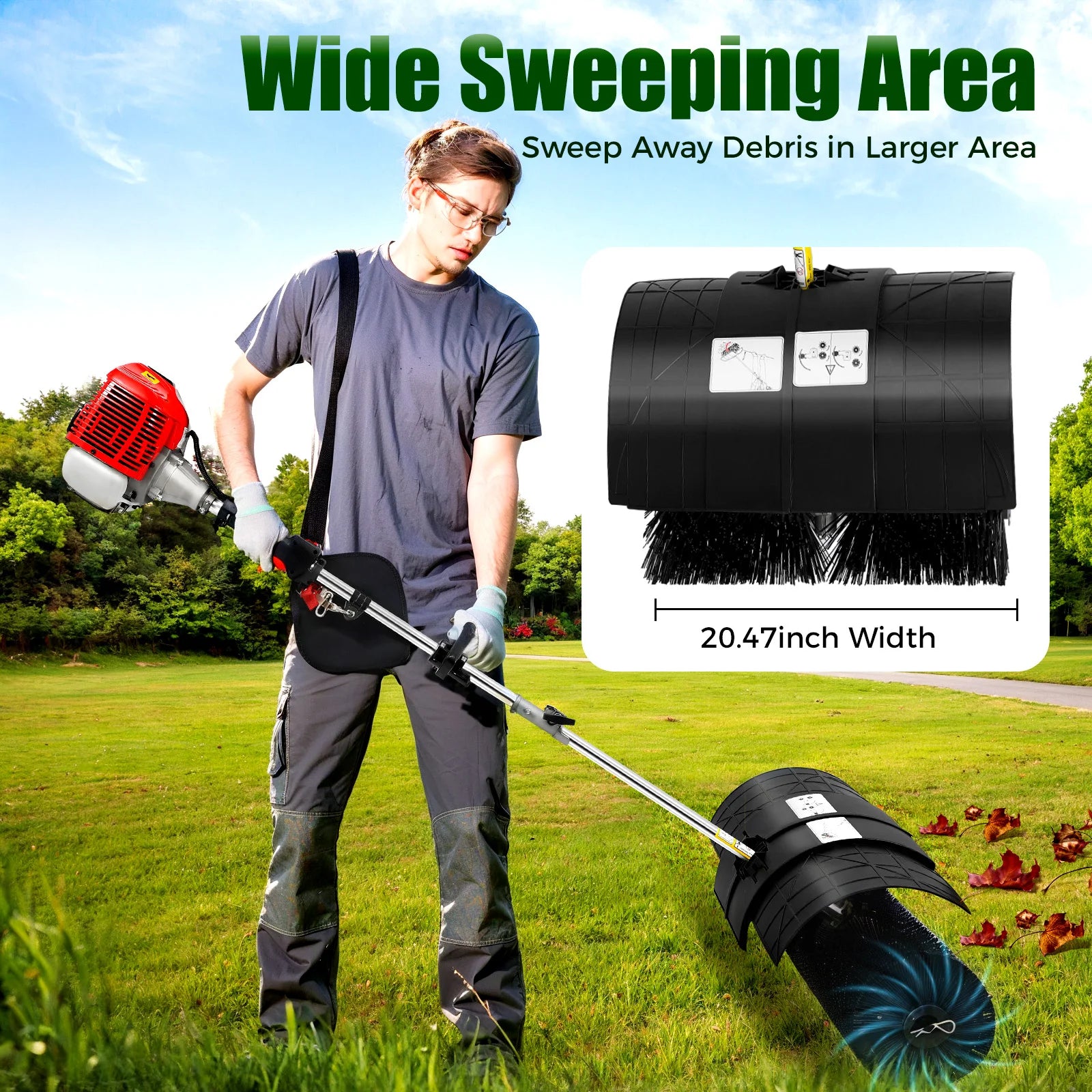

Wide Sweeping Area: High-density nylon brush with a width of 20.47 inches is capable of sweeping away light debris while sweeping a larger area.

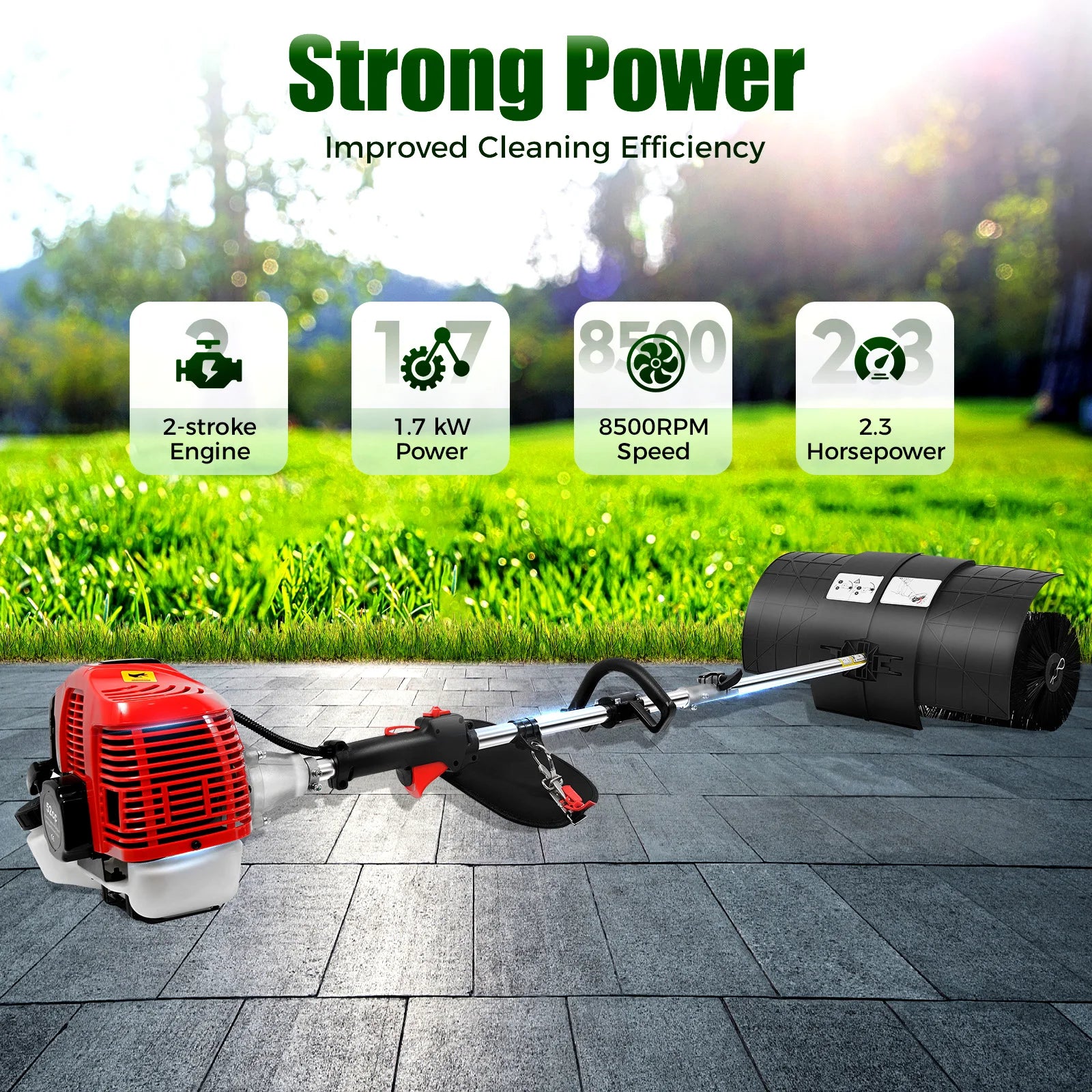

Strong Power: It is powered by a two-stroke gasoline engine with 1.7 kW of power, 8,500 rpm, 2.3 hp, and has a hand puller to facilitate your startup and an air filter to filter impurities, realizing a small body with high power and improved cleaning efficiency.

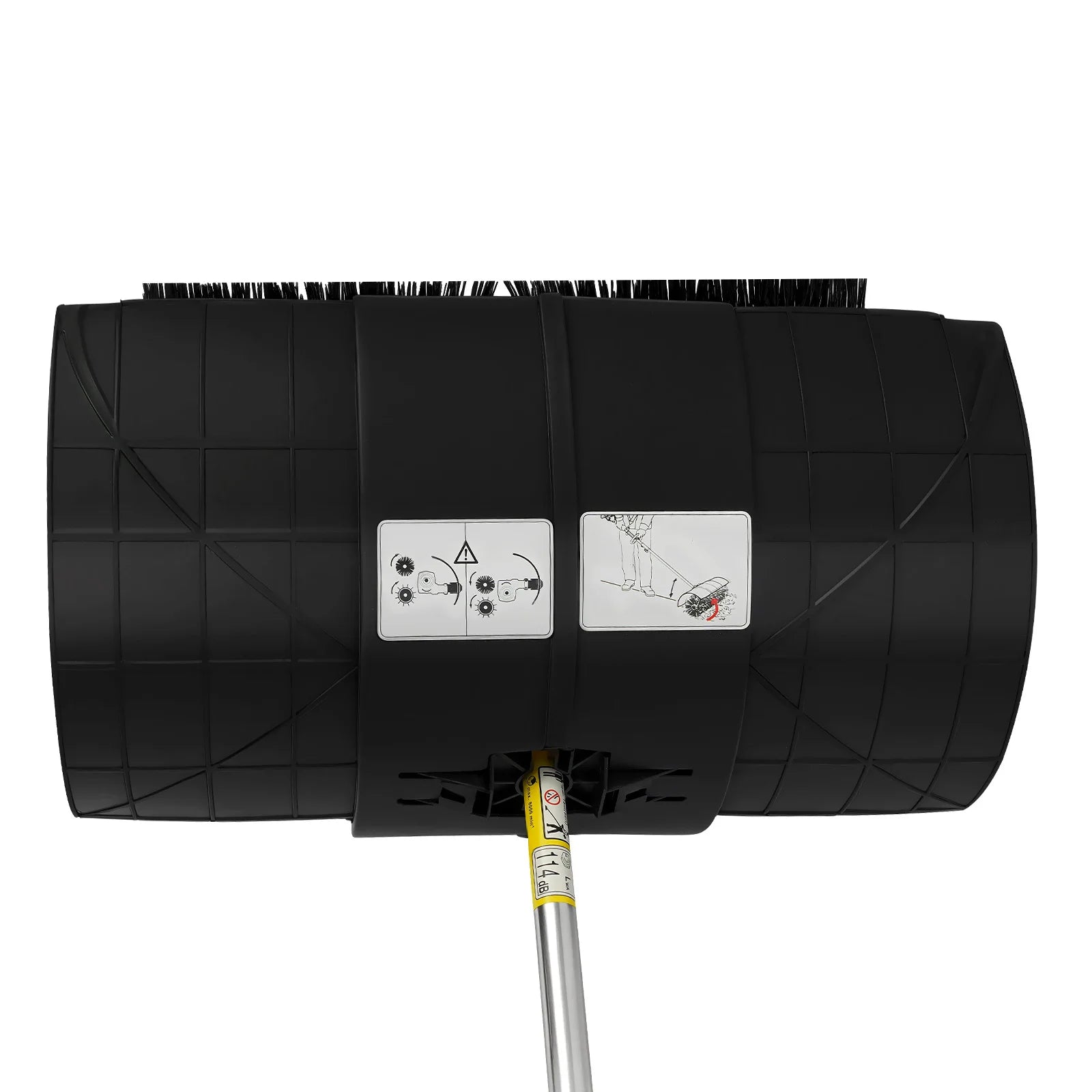

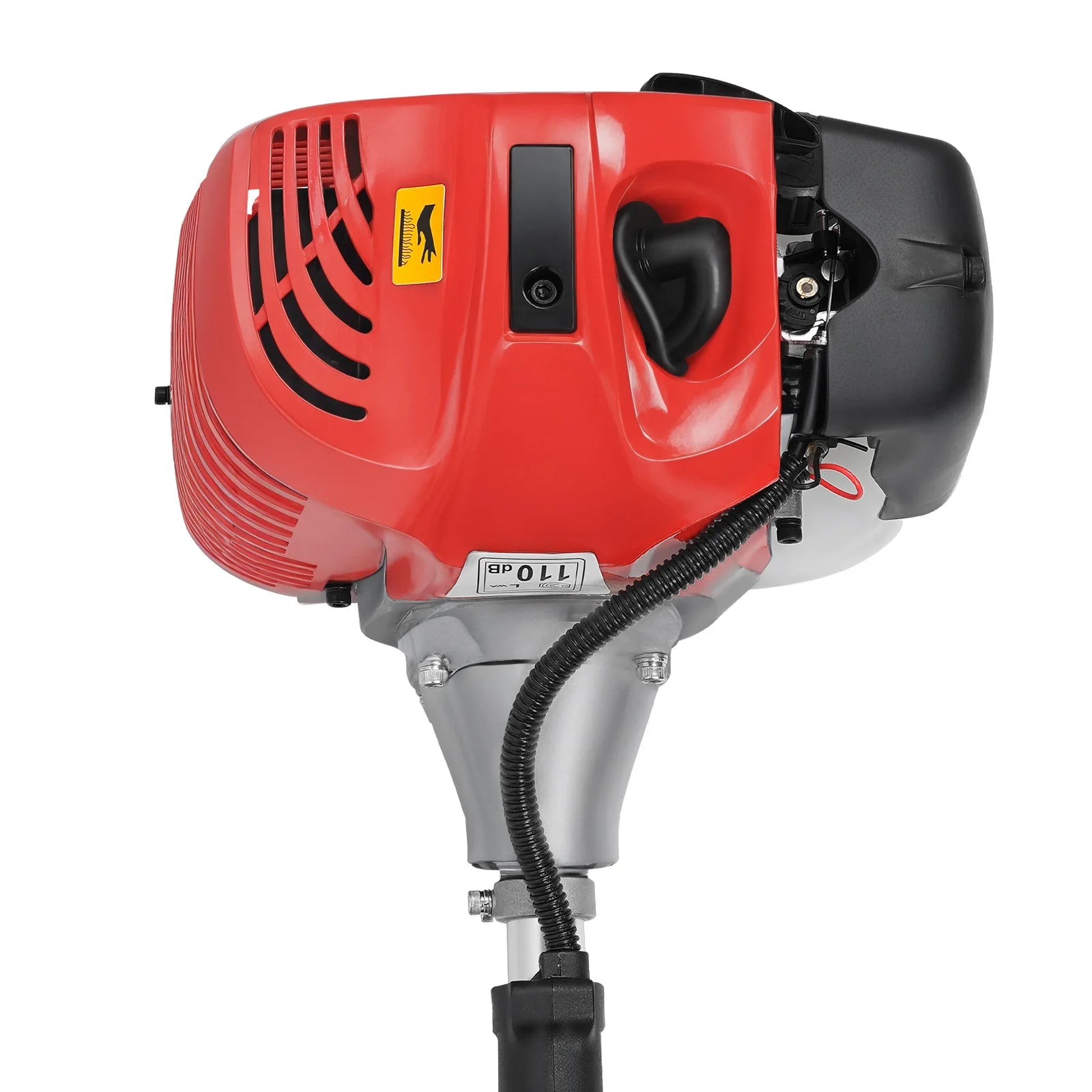

High Safety: It is equipped with a protective cover and goggles to prevent the sand, dust, small stones, grass, tree branches, etc. raised during the operation from causing injury to the operator and play a localized protective role. In addition, the evenly distributed cooling holes on the engine motor ensure smooth operation and improve the safety of use.

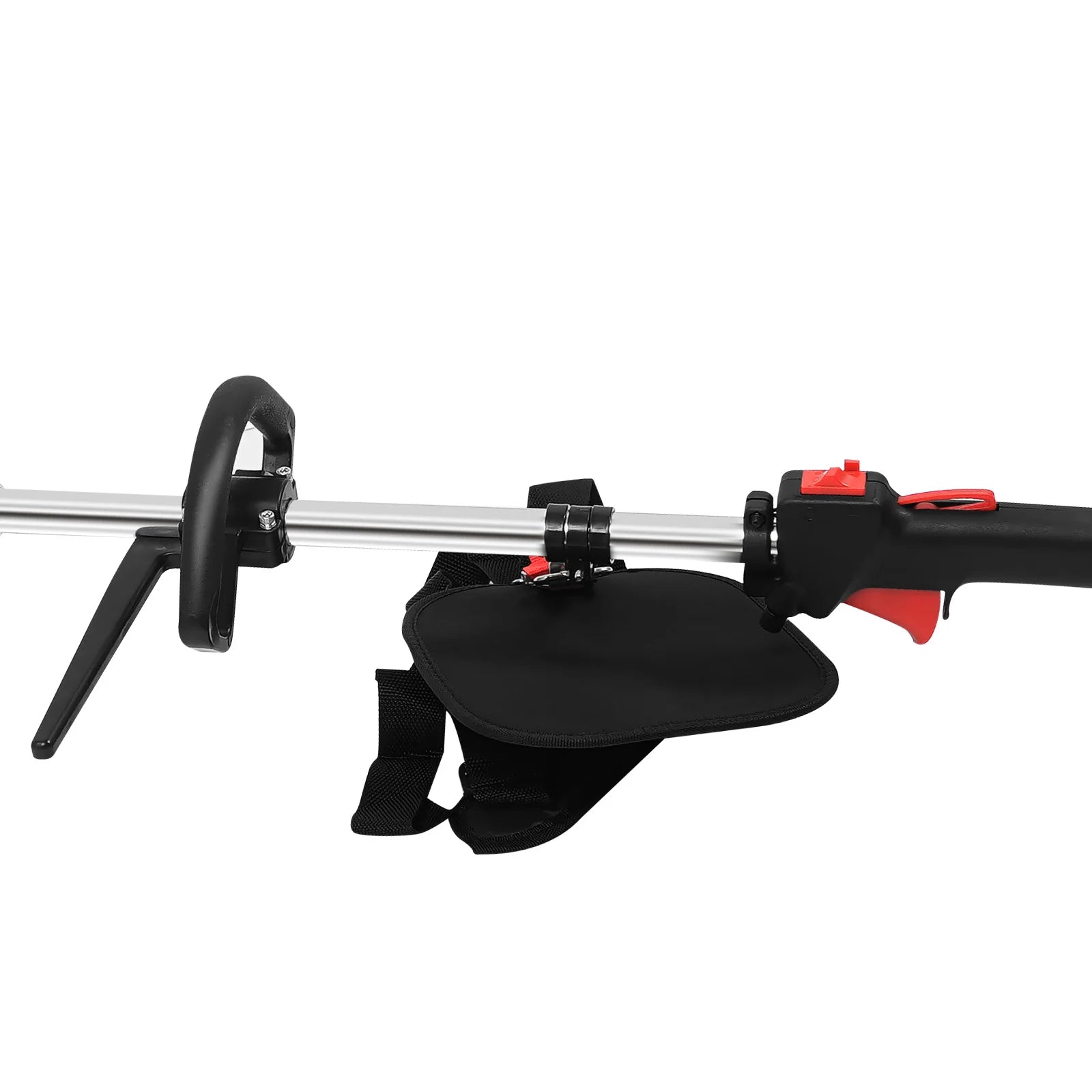

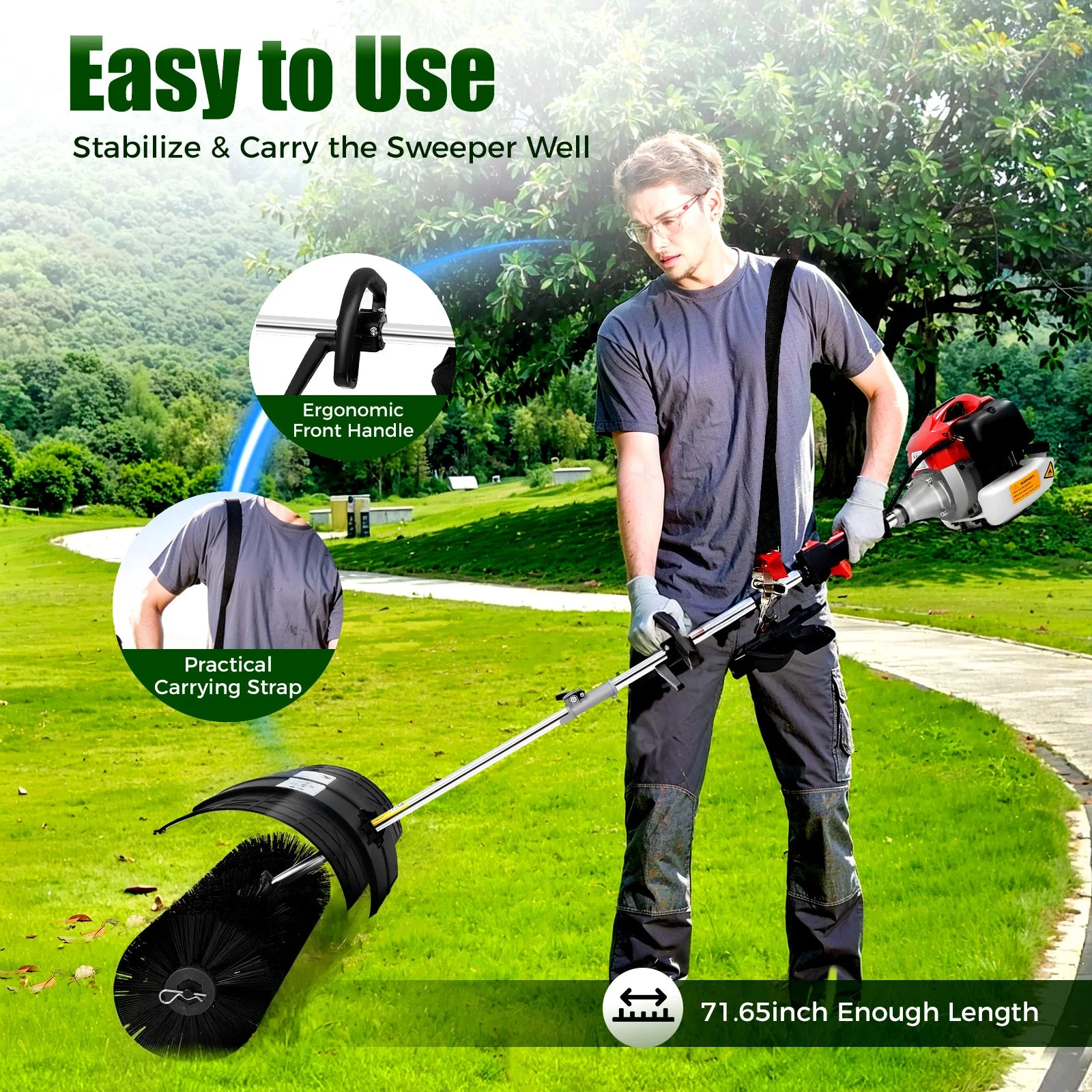

Easy to Use: The ergonomic front handle and the practical carrying strap make it possible to stabilize and carry the sweeper well, making it effortless to use.

User Friendly:  You can use the throttle handle to adjust the motor speed for better sweeping results. The total length of this handheld sweeper is 71.65in, so it can be used with people of different heights. Moreover, enough length can avoid bending over for long periods and reduce fatigue from prolonged work.

Easy to Clean:With a smooth engine surface and removable cleaning brush, it is easy to clean after use.

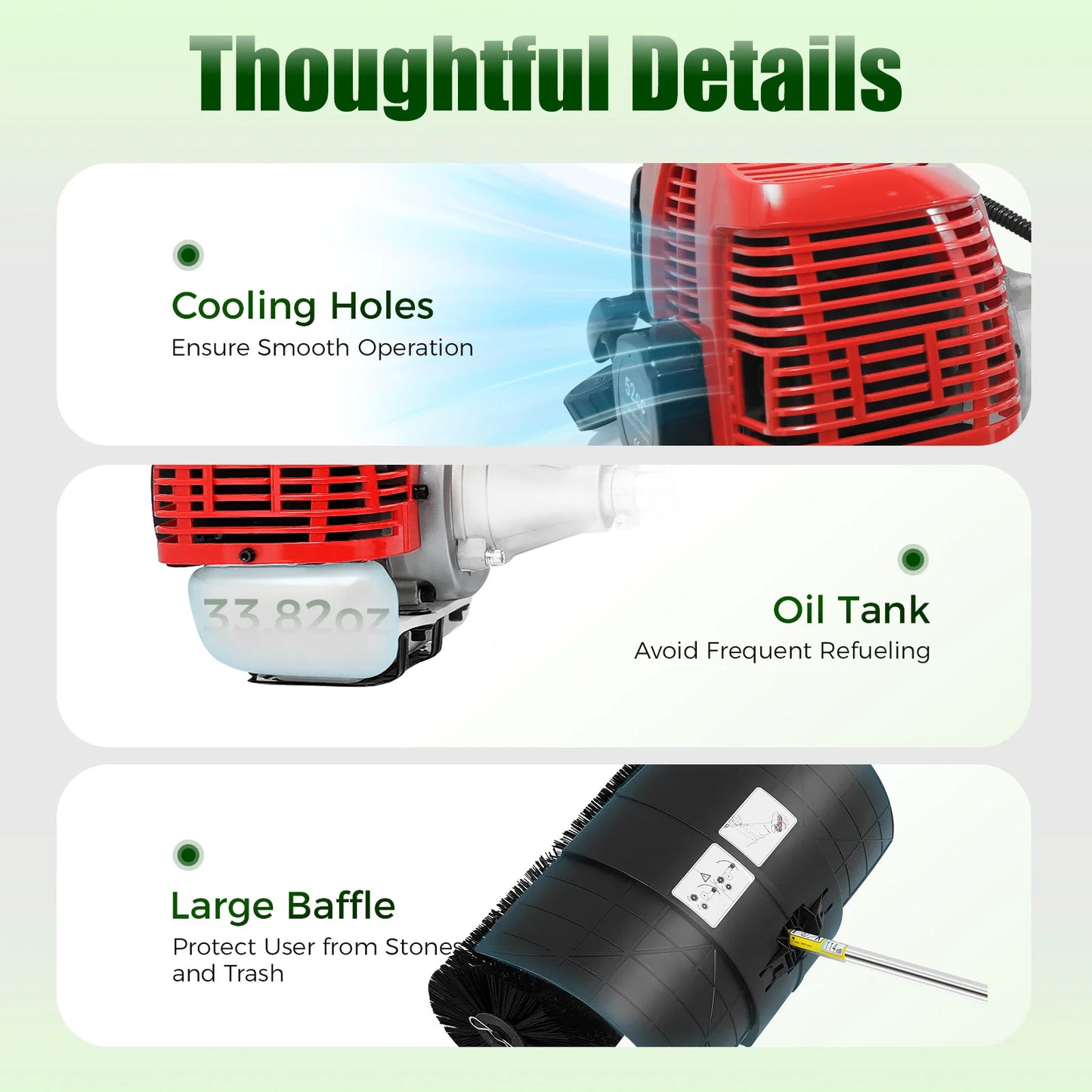

Details

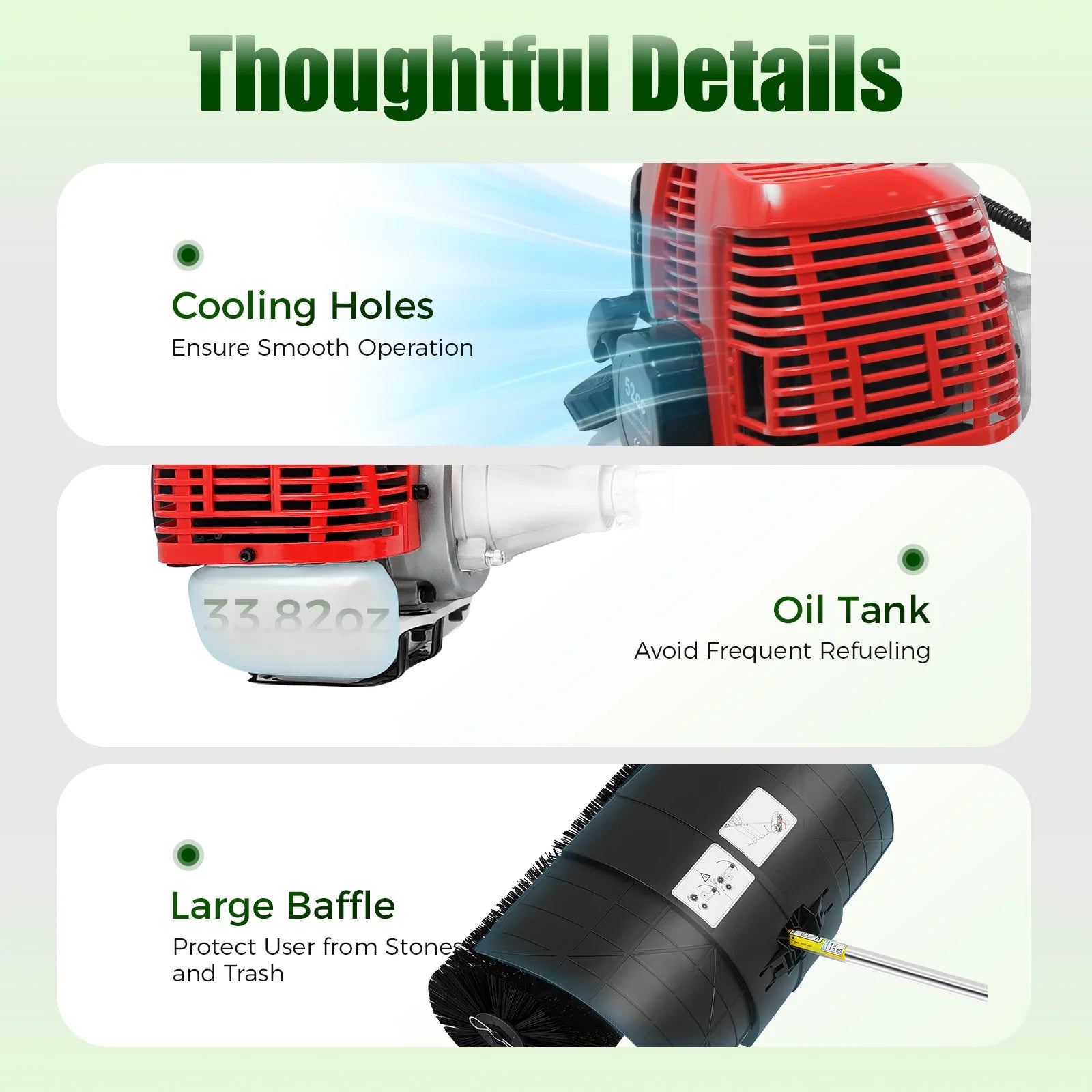

Oil Tank: The visual fuel tank with a capacity of 33.82 oz allows you to see inside and refuel in a timely manner.

Tool Kit Bag: It makes it easy to organize your tools and prevent them from getting lost.

Practical Funnel: It makes it easy for you to refuel.

Application

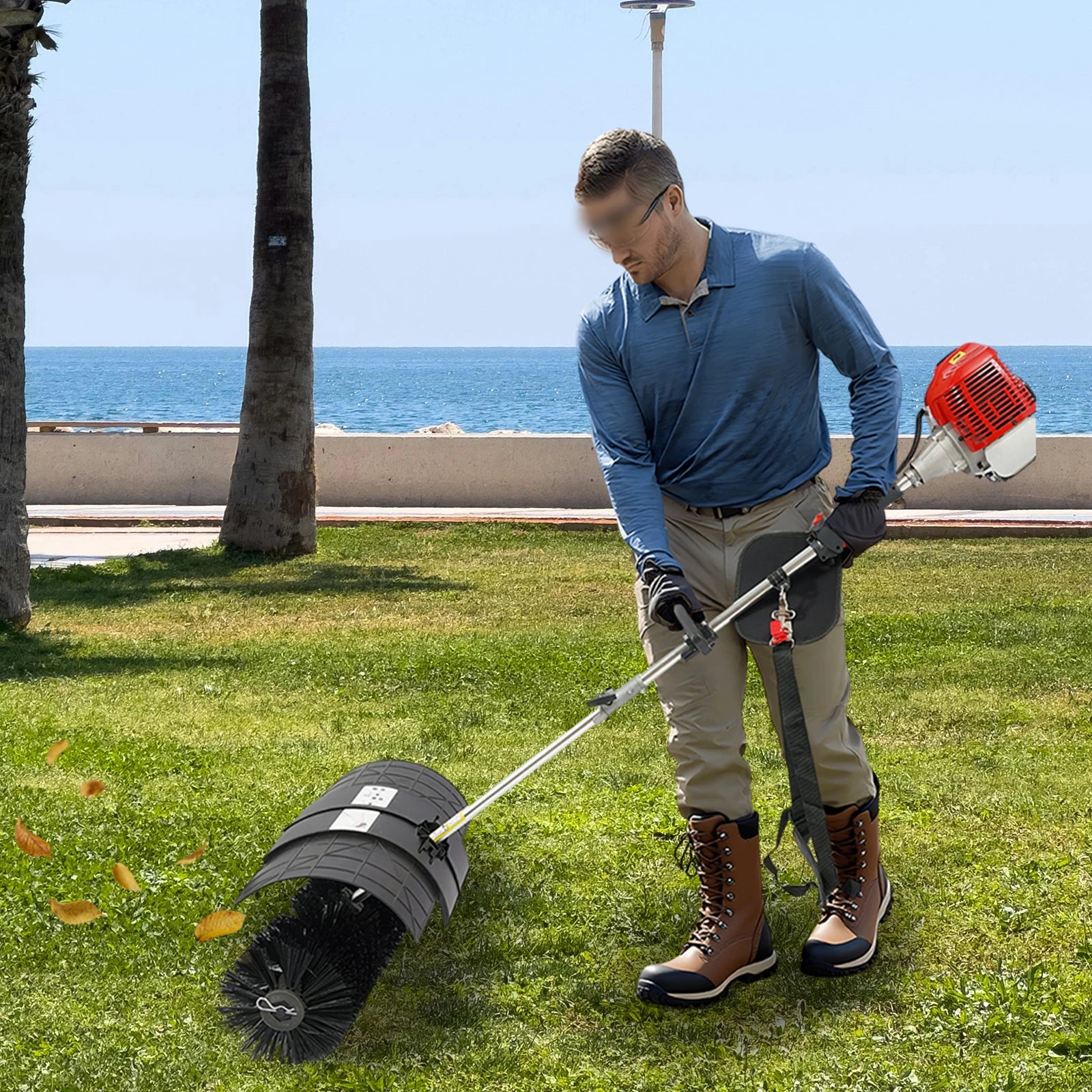

It is widely used for sweeping boulevards, driveways, lawns, sidewalks, golf courses, soccer fields, and other sites.  It is suitable for cleaning light debris on hard surfaces.

Notes

1. Please keep the fuel away from the fire source.

2. The distance between the protective cover and the brush head is recommended to be between 9.8-13.8 inches.

3. The ratio of fuel in use should be proportioned according to the oil level. Fuel should be supplied as needed, please do not use fuel that has been mixed for more than 7 days and non-two-stroke gasoline engine oil, and empty the fuel tank when not in use for a long period.

4. The damper opens downwards when the engine is running. The warm engine start damper opens downwards, do not close the damper. If the engine is overheated and it is difficult to start, you can increase the accelerator idling speed and start again, or wait for the engine to cool down a little before starting.

5. Please read the English instruction manual carefully before use and pay particular attention to the safety instructions contained therein.

6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
